wstapi.c File Reference

#include "wstapi.h"

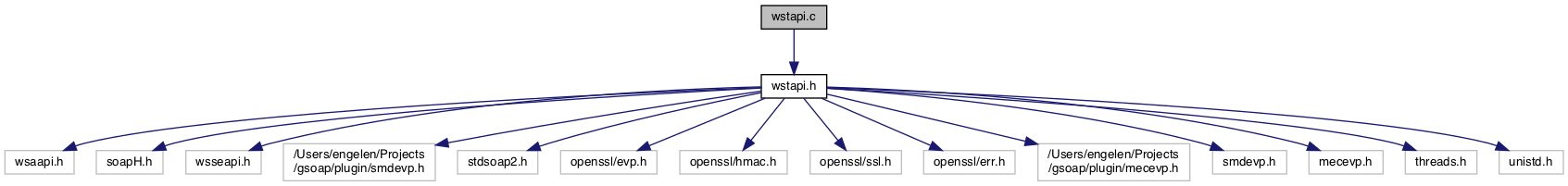

Include dependency graph for wstapi.c:

Functions
SOAP_FMAC1 int SOAP_FMAC2	soap_wst_request_saml_token (struct soap *soap, const char *endpoint, int soapver, const char *applyto, const char *username, const char *password, saml1__AssertionType **saml1, saml2__AssertionType **saml2)
	Request SAML 1.0 or SAML 2.0 token. Verifies the SAML signature, which requires soap->cafile to be set. Does not verify the conditions of the SAML token, such as NotBefore and NotOnOrAfter, which has to be done explicitly as shown in the documentation. More...
SOAP_FMAC1 int SOAP_FMAC2	soap_wst_request_psha1_token (struct soap *soap, const char *endpoint, int soapver, const char *applyto, const char *username, const char *password, char *psha1, size_t psha1len)
	Request PSHA1 token. More...

Variables
const char *	soap_wst_rst_action = SOAP_NAMESPACE_OF_wst "/RST/Issue"
const char *	soap_wst_rstr_action = SOAP_NAMESPACE_OF_wst "/RSTR/Issue"
const char *	soap_wst_rstc_action = SOAP_NAMESPACE_OF_wst "/RSTC/Issue"
const char *	soap_wst_rstrc_action = SOAP_NAMESPACE_OF_wst "/RSTRC/IssueFinal"
struct Namespace	soap11_namespaces []
struct Namespace	soap12_namespaces []

Function Documentation

SOAP_FMAC1 int SOAP_FMAC2 soap_wst_request_psha1_token	(	struct soap *	soap,
		const char *	endpoint,
		int	soapver,
		const char *	applyto,
		const char *	username,
		const char *	password,
		char *	psha1,
		size_t	psha1len
	)

Request PSHA1 token.

Parameters

soap	context
endpoint	service endpoint URL (send to)
soapver	SOAP version 1 = SOAP 1.1, 2 = SOAP 1.2 (recommended)
applyto	service domain
username	authentication or NULL
password	authentication or NULL
psha1	filled with the PSHA1 result token of psa1len bytes
psha1len	token size in bytes

Returns

SOAP_OK or error code

SOAP_FMAC1 int SOAP_FMAC2 soap_wst_request_saml_token	(	struct soap *	soap,
		const char *	endpoint,
		int	soapver,
		const char *	applyto,
		const char *	username,
		const char *	password,
		saml1__AssertionType **	saml1,
		saml2__AssertionType **	saml2
	)

Request SAML 1.0 or SAML 2.0 token. Verifies the SAML signature, which requires soap->cafile to be set. Does not verify the conditions of the SAML token, such as NotBefore and NotOnOrAfter, which has to be done explicitly as shown in the documentation.

Parameters

soap	context
endpoint	service endpoint URL (send to)
soapver	SOAP version 1 = SOAP 1.1, 2 = SOAP 1.2 (recommended)
applyto	service domain
username	authentication or NULL
password	authentication or NULL
saml1	if non-NULL, requests SAML 1.0 and upon return points to a pointer that is set to the SAML 1.0 assertion received
saml2	if non-NULL, requests SAML 2.0 and upon return points to a pointer that is set to the SAML 2.0 assertion received

Returns

SOAP_OK or error code

Variable Documentation

struct Namespace soap11_namespaces[]

Initial value:

= {
  {"SOAP-ENV", "http://schemas.xmlsoap.org/soap/envelope/", "http://www.w3.org/*/soap-envelope", NULL},
  {"SOAP-ENC", "http://schemas.xmlsoap.org/soap/encoding/", "http://www.w3.org/*/soap-encoding", NULL},
  {"xsi", "http://www.w3.org/2001/XMLSchema-instance", "http://www.w3.org/*/XMLSchema-instance", NULL},
  {"xsd", "http://www.w3.org/2001/XMLSchema", "http://www.w3.org/*/XMLSchema", NULL},
  {"c14n", "http://www.w3.org/2001/10/xml-exc-c14n#", NULL, NULL},
  {"ds", "http://www.w3.org/2000/09/xmldsig#", NULL, NULL},
  {"saml1", SOAP_NAMESPACE_OF_saml1, NULL, NULL},
  {"saml2", SOAP_NAMESPACE_OF_saml2, NULL, NULL},
  {"xenc", "http://www.w3.org/2001/04/xmlenc#", NULL, NULL},
  {"wsc", "http://docs.oasis-open.org/ws-sx/ws-secureconversation/200512", "http://schemas.xmlsoap.org/ws/2005/02/sc", NULL},
  {"wsse", SOAP_NAMESPACE_OF_wsse, "http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd", NULL},
  {"chan", "http://schemas.microsoft.com/ws/2005/02/duplex", NULL, NULL},
  {"wsa5", "http://www.w3.org/2005/08/addressing", "http://schemas.xmlsoap.org/ws/2004/08/addressing", NULL},
  {"wsp", "http://schemas.xmlsoap.org/ws/2004/09/policy", NULL, NULL},
  {"wsu", SOAP_NAMESPACE_OF_wsu, NULL, NULL},
  {"wst", SOAP_NAMESPACE_OF_wst, "http://schemas.xmlsoap.org/ws/2005/02/trust", NULL},
  {NULL, NULL, NULL, NULL}
}

struct Namespace soap12_namespaces[]

Initial value:

= {
  {"SOAP-ENV", "http://www.w3.org/2003/05/soap-envelope", "http://schemas.xmlsoap.org/soap/envelope/", NULL},
  {"SOAP-ENC", "http://www.w3.org/2003/05/soap-encoding", "http://schemas.xmlsoap.org/soap/encoding/", NULL},
  {"xsi", "http://www.w3.org/2001/XMLSchema-instance", "http://www.w3.org/*/XMLSchema-instance", NULL},
  {"xsd", "http://www.w3.org/2001/XMLSchema", "http://www.w3.org/*/XMLSchema", NULL},
  {"c14n", "http://www.w3.org/2001/10/xml-exc-c14n#", NULL, NULL},
  {"ds", "http://www.w3.org/2000/09/xmldsig#", NULL, NULL},
  {"saml1", SOAP_NAMESPACE_OF_saml1, NULL, NULL},
  {"saml2", SOAP_NAMESPACE_OF_saml2, NULL, NULL},
  {"xenc", "http://www.w3.org/2001/04/xmlenc#", NULL, NULL},
  {"wsc", "http://docs.oasis-open.org/ws-sx/ws-secureconversation/200512", "http://schemas.xmlsoap.org/ws/2005/02/sc", NULL},
  {"wsse", SOAP_NAMESPACE_OF_wsse, "http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd", NULL},
  {"chan", "http://schemas.microsoft.com/ws/2005/02/duplex", NULL, NULL},
  {"wsa5", "http://www.w3.org/2005/08/addressing", "http://schemas.xmlsoap.org/ws/2004/08/addressing", NULL},
  {"wsp", "http://schemas.xmlsoap.org/ws/2004/09/policy", NULL, NULL},
  {"wsu", SOAP_NAMESPACE_OF_wsu, NULL, NULL},
  {"wst", SOAP_NAMESPACE_OF_wst, "http://schemas.xmlsoap.org/ws/2005/02/trust", NULL},
  {NULL, NULL, NULL, NULL}
}

const char* soap_wst_rst_action = SOAP_NAMESPACE_OF_wst "/RST/Issue"

const char* soap_wst_rstc_action = SOAP_NAMESPACE_OF_wst "/RSTC/Issue"

const char* soap_wst_rstr_action = SOAP_NAMESPACE_OF_wst "/RSTR/Issue"

const char* soap_wst_rstrc_action = SOAP_NAMESPACE_OF_wst "/RSTRC/IssueFinal"
