mecevp.h File Reference

updated Mon May 13 2024 by Robert van Engelen

Classes | Macros | Enumerations | Functions
mecevp.h File Reference
#include "stdsoap2.h"
#include <openssl/evp.h>
#include <openssl/ssl.h>
#include <openssl/err.h>

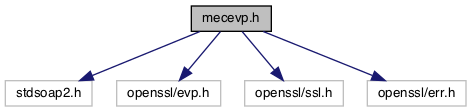

Include dependency graph for mecevp.h:
This graph shows which files directly or indirectly include this file:

Classes

struct  soap_mec_data
 The mecevp engine context data. More...


Macros

#define SOAP_MEC_KEY_TYPE   EVP_PKEY

#define SOAP_MEC_NONE   (0)

#define SOAP_MEC_DES_CBC   (0x0010)

#define SOAP_MEC_AES128_CBC   (0x0020)

#define SOAP_MEC_AES192_CBC   (0x0040)

#define SOAP_MEC_AES256_CBC   (0x0080)

#define SOAP_MEC_AES512_CBC   (0x0100)

#define SOAP_MEC_GCM   (0x1000)

#define SOAP_MEC_ALGO   (0x1FFF)

#define SOAP_MEC_AES128_GCM   (SOAP_MEC_AES128_CBC | SOAP_MEC_GCM)

#define SOAP_MEC_AES192_GCM   (SOAP_MEC_AES192_CBC | SOAP_MEC_GCM)

#define SOAP_MEC_AES256_GCM   (SOAP_MEC_AES256_CBC | SOAP_MEC_GCM)

#define SOAP_MEC_AES512_GCM   (SOAP_MEC_AES512_CBC | SOAP_MEC_GCM)

#define SOAP_MEC_ENC   (0x2000)

#define SOAP_MEC_DEC   (0x0000)

#define SOAP_MEC_ENV   (0x4000)

#define SOAP_MEC_ENV_ENC   (SOAP_MEC_ENV | SOAP_MEC_ENC)

#define SOAP_MEC_ENV_DEC   (SOAP_MEC_ENV | SOAP_MEC_DEC)

#define SOAP_MEC_MASK   (0xFFFF)

#define SOAP_MEC_STORE   (0x010000)

#define SOAP_MEC_OAEP   (0x020000)

#define SOAP_MEC_ENC_DES_CBC   (SOAP_MEC_DES_CBC | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES128_CBC   (SOAP_MEC_AES128_CBC | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES192_CBC   (SOAP_MEC_AES192_CBC | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES256_CBC   (SOAP_MEC_AES256_CBC | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES512_CBC   (SOAP_MEC_AES512_CBC | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES128_GCM   (SOAP_MEC_AES128_GCM | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES192_GCM   (SOAP_MEC_AES192_GCM | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES256_GCM   (SOAP_MEC_AES256_GCM | SOAP_MEC_ENC)

#define SOAP_MEC_ENC_AES512_GCM   (SOAP_MEC_AES512_GCM | SOAP_MEC_ENC)

#define SOAP_MEC_DEC_DES_CBC   (SOAP_MEC_DES_CBC | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES128_CBC   (SOAP_MEC_AES128_CBC | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES192_CBC   (SOAP_MEC_AES192_CBC | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES256_CBC   (SOAP_MEC_AES256_CBC | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES512_CBC   (SOAP_MEC_AES512_CBC | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES128_GCM   (SOAP_MEC_AES128_GCM | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES192_GCM   (SOAP_MEC_AES192_GCM | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES256_GCM   (SOAP_MEC_AES256_GCM | SOAP_MEC_DEC)

#define SOAP_MEC_DEC_AES512_GCM   (SOAP_MEC_AES512_GCM | SOAP_MEC_DEC)

#define SOAP_MEC_ENV_ENC_DES_CBC   (SOAP_MEC_ENC_DES_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES128_CBC   (SOAP_MEC_ENC_AES128_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES192_CBC   (SOAP_MEC_ENC_AES192_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES256_CBC   (SOAP_MEC_ENC_AES256_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES512_CBC   (SOAP_MEC_ENC_AES512_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES128_GCM   (SOAP_MEC_ENC_AES128_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES192_GCM   (SOAP_MEC_ENC_AES192_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES256_GCM   (SOAP_MEC_ENC_AES256_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_ENC_AES512_GCM   (SOAP_MEC_ENC_AES512_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_DES_CBC   (SOAP_MEC_DEC_DES_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES128_CBC   (SOAP_MEC_DEC_AES128_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES192_CBC   (SOAP_MEC_DEC_AES192_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES256_CBC   (SOAP_MEC_DEC_AES256_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES512_CBC   (SOAP_MEC_DEC_AES512_CBC | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES128_GCM   (SOAP_MEC_DEC_AES128_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES192_GCM   (SOAP_MEC_DEC_AES192_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES256_GCM   (SOAP_MEC_DEC_AES256_GCM | SOAP_MEC_ENV)

#define SOAP_MEC_ENV_DEC_AES512_GCM   (SOAP_MEC_DEC_AES512_GCM | SOAP_MEC_ENV)


Enumerations

enum  SOAP_MEC_STATE {
  SOAP_MEC_STATE_NONE, SOAP_MEC_STATE_INIT, SOAP_MEC_STATE_IV, SOAP_MEC_STATE_DECRYPT,
  SOAP_MEC_STATE_FINAL, SOAP_MEC_STATE_FLUSH
}


Functions

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_begin (struct soap *soap, struct soap_mec_data *data, int alg, SOAP_MEC_KEY_TYPE *pkey, unsigned char *key, int *keylen)
 Initialize the mecevp engine data and begin encryption or decryption message sequence using a private/public key or symmetric secret key. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_start_alg (struct soap *soap, int alg, const unsigned char *key)
 Start encryption or decryption of current message. If key is non-NULL, use the symmetric key with alg. Use soap_mec_start only after soap_mec_begin. The soap_mec_start should be followed by a soap_mec_stop call. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_start (struct soap *soap, const unsigned char *key)
 Start encryption or decryption of current message. If key is non-NULL, use the symmetric key with alg. Use soap_mec_start only after soap_mec_begin. The soap_mec_start should be followed by a soap_mec_stop call. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_stop (struct soap *soap)
 Stops encryption or decryption of current message. Use after soap_mec_start. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_end (struct soap *soap, struct soap_mec_data *data)
 Ends encryption or decryption of a sequence of message parts that began with soap_mec_begin. More...

SOAP_FMAC1 size_t SOAP_FMAC2 soap_mec_size (int alg, SOAP_MEC_KEY_TYPE *pkey)
 Returns the number of octets needed to store the public/private key or the symmetric key, depending on the algorithm. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_init (struct soap *soap, struct soap_mec_data *data, int alg, SOAP_MEC_KEY_TYPE *pkey, unsigned char *key, int *keylen)
 Initialize mecevp engine state and create context for encryption/decryption algorithm using a private/public key or symmetric secret key. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_update (struct soap *soap, struct soap_mec_data *data, const char **s, size_t *n)
 Update mecevp engine state: encrypts plain text (or raw data) or decrypts cipher data in base64 format. More...

SOAP_FMAC1 int SOAP_FMAC2 soap_mec_final (struct soap *soap, struct soap_mec_data *data, const char **s, size_t *n)
 Ends mecevp engine state: encrypt/decrypt remainder from buffers. More...

SOAP_FMAC1 void SOAP_FMAC2 soap_mec_cleanup (struct soap *soap, struct soap_mec_data *data)
 Clean up mecevp engine and deallocate cipher context and buffers. More...


Macro Definition Documentation

#define SOAP_MEC_AES128_CBC   (0x0020)

Cipher type (AES128 CBC)

#define SOAP_MEC_AES128_GCM   (SOAP_MEC_AES128_CBC | SOAP_MEC_GCM)

Cipher type (AES128 GCM)

#define SOAP_MEC_AES192_CBC   (0x0040)

Cipher type (AES192 CBC)

#define SOAP_MEC_AES192_GCM   (SOAP_MEC_AES192_CBC | SOAP_MEC_GCM)

Cipher type (AES192 GCM)

#define SOAP_MEC_AES256_CBC   (0x0080)

Cipher type (AES256 CBC)

#define SOAP_MEC_AES256_GCM   (SOAP_MEC_AES256_CBC | SOAP_MEC_GCM)

Cipher type (AES256 GCM)

#define SOAP_MEC_AES512_CBC   (0x0100)

Cipher type (AES512 CBC)

#define SOAP_MEC_AES512_GCM   (SOAP_MEC_AES512_CBC | SOAP_MEC_GCM)

Cipher type (AES512 GCM)

#define SOAP_MEC_ALGO   (0x1FFF)

Algorithm

#define SOAP_MEC_DEC   (0x0000)

Decode mode

#define SOAP_MEC_DEC_AES128_CBC   (SOAP_MEC_AES128_CBC | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES128_GCM   (SOAP_MEC_AES128_GCM | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES192_CBC   (SOAP_MEC_AES192_CBC | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES192_GCM   (SOAP_MEC_AES192_GCM | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES256_CBC   (SOAP_MEC_AES256_CBC | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES256_GCM   (SOAP_MEC_AES256_GCM | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES512_CBC   (SOAP_MEC_AES512_CBC | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_AES512_GCM   (SOAP_MEC_AES512_GCM | SOAP_MEC_DEC)
#define SOAP_MEC_DEC_DES_CBC   (SOAP_MEC_DES_CBC | SOAP_MEC_DEC)

Symmetric secret key decryption

#define SOAP_MEC_DES_CBC   (0x0010)

Cipher type (triple 3DES EDE CBC)

#define SOAP_MEC_ENC   (0x2000)

Encode mode

#define SOAP_MEC_ENC_AES128_CBC   (SOAP_MEC_AES128_CBC | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES128_GCM   (SOAP_MEC_AES128_GCM | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES192_CBC   (SOAP_MEC_AES192_CBC | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES192_GCM   (SOAP_MEC_AES192_GCM | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES256_CBC   (SOAP_MEC_AES256_CBC | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES256_GCM   (SOAP_MEC_AES256_GCM | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES512_CBC   (SOAP_MEC_AES512_CBC | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_AES512_GCM   (SOAP_MEC_AES512_GCM | SOAP_MEC_ENC)
#define SOAP_MEC_ENC_DES_CBC   (SOAP_MEC_DES_CBC | SOAP_MEC_ENC)

Symmetric secret key encryption

#define SOAP_MEC_ENV   (0x4000)

Envelope mode

#define SOAP_MEC_ENV_DEC   (SOAP_MEC_ENV | SOAP_MEC_DEC)

Envelope decryption mode

#define SOAP_MEC_ENV_DEC_AES128_CBC   (SOAP_MEC_DEC_AES128_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES128_GCM   (SOAP_MEC_DEC_AES128_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES192_CBC   (SOAP_MEC_DEC_AES192_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES192_GCM   (SOAP_MEC_DEC_AES192_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES256_CBC   (SOAP_MEC_DEC_AES256_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES256_GCM   (SOAP_MEC_DEC_AES256_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES512_CBC   (SOAP_MEC_DEC_AES512_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_AES512_GCM   (SOAP_MEC_DEC_AES512_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_DEC_DES_CBC   (SOAP_MEC_DEC_DES_CBC | SOAP_MEC_ENV)

Envelope (using RSA private key) decryption

#define SOAP_MEC_ENV_ENC   (SOAP_MEC_ENV | SOAP_MEC_ENC)

Envelope encryption mode

#define SOAP_MEC_ENV_ENC_AES128_CBC   (SOAP_MEC_ENC_AES128_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES128_GCM   (SOAP_MEC_ENC_AES128_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES192_CBC   (SOAP_MEC_ENC_AES192_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES192_GCM   (SOAP_MEC_ENC_AES192_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES256_CBC   (SOAP_MEC_ENC_AES256_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES256_GCM   (SOAP_MEC_ENC_AES256_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES512_CBC   (SOAP_MEC_ENC_AES512_CBC | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_AES512_GCM   (SOAP_MEC_ENC_AES512_GCM | SOAP_MEC_ENV)
#define SOAP_MEC_ENV_ENC_DES_CBC   (SOAP_MEC_ENC_DES_CBC | SOAP_MEC_ENV)

Envelope (using RSA public key) encryption

#define SOAP_MEC_GCM   (0x1000)

Enable Galois Counter Mode (GCM)

#define SOAP_MEC_KEY_TYPE   EVP_PKEY

Expose EVP_PKEY in a portable representation

#define SOAP_MEC_MASK   (0xFFFF)

Mask

#define SOAP_MEC_NONE   (0)

Engine off

#define SOAP_MEC_OAEP   (0x020000)

RSA-OAEP padding

#define SOAP_MEC_STORE   (0x010000)

Enable store (in buffer) instead of streaming mode

Enumeration Type Documentation

Decryption engine states

Enumerator
SOAP_MEC_STATE_NONE
SOAP_MEC_STATE_INIT
SOAP_MEC_STATE_IV
SOAP_MEC_STATE_DECRYPT
SOAP_MEC_STATE_FINAL
SOAP_MEC_STATE_FLUSH

Function Documentation

int soap_mec_begin ( struct soap *  soap,
struct soap_mec_data data,
int  alg,
SOAP_MEC_KEY_TYPE pkey,
unsigned char *  key,
int *  keylen
)

Initialize the mecevp engine data and begin encryption or decryption message sequence using a private/public key or symmetric secret key.

Parameters
soapcontext
[in,out]datamecevp engine context
[in]algencryption/decryption algorithm
[in]pkeypublic/private key or NULL
[in,out]keysecret key or encrypted ephemeral secret key set with envelope encryption, or NULL
[in,out]keylensecret key length
Returns
SOAP_OK or error code
void soap_mec_cleanup ( struct soap *  soap,
struct soap_mec_data data
)

Clean up mecevp engine and deallocate cipher context and buffers.

Parameters
soapcontext
[in,out]datamecevp engine context
Returns
SOAP_OK or SOAP_SSL_ERROR
int soap_mec_end ( struct soap *  soap,
struct soap_mec_data data
)

Ends encryption or decryption of a sequence of message parts that began with soap_mec_begin.

Parameters
soapcontext
[in,out]datamecevp engine context
Returns
SOAP_OK or error code
int soap_mec_final ( struct soap *  soap,
struct soap_mec_data data,
const char **  s,
size_t *  n
)

Ends mecevp engine state: encrypt/decrypt remainder from buffers.

Parameters
soapcontext
[in,out]datamecevp engine context
[out]safterwards points to converted remaining data in streaming mode, or entire converted data in buffer mode (SOAP_MEC_STORE option)
[out]nafterwards size of remaining data
Returns
SOAP_OK or SOAP_SSL_ERROR
int soap_mec_init ( struct soap *  soap,
struct soap_mec_data data,
int  alg,
SOAP_MEC_KEY_TYPE pkey,
unsigned char *  key,
int *  keylen
)

Initialize mecevp engine state and create context for encryption/decryption algorithm using a private/public key or symmetric secret key.

Parameters
soapcontext
[in,out]datamecevp engine context
[in]algencryption/decryption algorithm
[in]pkeypublic/private key or NULL
[in,out]keysecret key or encrypted ephemeral secret key set with envelope encryption, or NULL
[in,out]keylensecret key length
Returns
SOAP_OK or SOAP_SSL_ERROR
size_t soap_mec_size ( int  alg,
SOAP_MEC_KEY_TYPE pkey
)

Returns the number of octets needed to store the public/private key or the symmetric key, depending on the algorithm.

Parameters
[in]algis the algorithm to be used
[in]pkeyis a pointer to an EVP_PKEY object or NULL for symmetric keys
Returns
size_t number of octets that is needed to hold the key.
int soap_mec_start ( struct soap *  soap,
const unsigned char *  key
)

Start encryption or decryption of current message. If key is non-NULL, use the symmetric key with alg. Use soap_mec_start only after soap_mec_begin. The soap_mec_start should be followed by a soap_mec_stop call.

Parameters
soapcontext
[in]keysecret DES/AES key or NULL
Returns
SOAP_OK or error code
int soap_mec_start_alg ( struct soap *  soap,
int  alg,
const unsigned char *  key
)

Start encryption or decryption of current message. If key is non-NULL, use the symmetric key with alg. Use soap_mec_start only after soap_mec_begin. The soap_mec_start should be followed by a soap_mec_stop call.

Parameters
soapcontext
[in]algalgorithm
[in]keysecret DES/AES key or NULL for private key
Returns
SOAP_OK or error code
int soap_mec_stop ( struct soap *  soap)

Stops encryption or decryption of current message. Use after soap_mec_start.

Parameters
soapcontext
Returns
SOAP_OK or error code
int soap_mec_update ( struct soap *  soap,
struct soap_mec_data data,
const char **  s,
size_t *  n
)

Update mecevp engine state: encrypts plain text (or raw data) or decrypts cipher data in base64 format.

Parameters
soapcontext
[in,out]datamecevp engine context
[in,out]sinput data to convert, afterwards points to converted data (original content is unchanged)
[in,out]nsize of input, afterwards size of output
Returns
SOAP_OK or SOAP_SSL_ERROR
