_wsrm__SequenceAcknowledgement Struct Reference

Top-level root element "http://docs.oasis-open.org/ws-rx/wsrm/200702":SequenceAcknowledgement. More...

#include <wsrm.h>

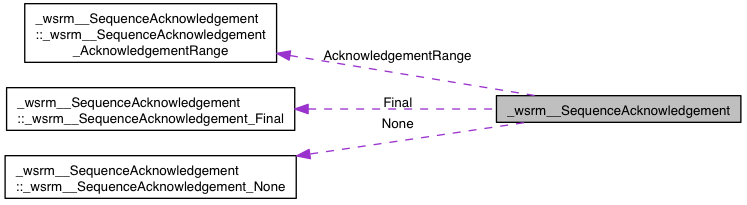

Collaboration diagram for _wsrm__SequenceAcknowledgement:

Classes
struct	_wsrm__SequenceAcknowledgement_AcknowledgementRange
struct	_wsrm__SequenceAcknowledgement_Final
	SEQUENCE OF ELEMENTS <xs:sequence> More...
struct	_wsrm__SequenceAcknowledgement_None

Public Attributes
char *	Identifier
	Element reference "http://docs.oasis-open.org/ws-rx/wsrm/200702":Identifier. More...
$int	__sizeNack
ULONG64 *	Nack
	Array ULONG64* of length 1..unbounded. More...
struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_Final *	Final
$int	__sizeAcknowledgementRange
struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_AcknowledgementRange *	AcknowledgementRange
struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_None *	None
int *	netrm__BufferRemaining
	WCF netrm BufferRemaining. More...
_XML	__any

Detailed Description

Top-level root element "http://docs.oasis-open.org/ws-rx/wsrm/200702":SequenceAcknowledgement.

"http://docs.oasis-open.org/ws-rx/wsrm/200702":SequenceAcknowledgement is a complexType.

Member Data Documentation

_XML _wsrm__SequenceAcknowledgement::__any

$int _wsrm__SequenceAcknowledgement::__sizeAcknowledgementRange

CHOICE OF ELEMENTS <xs:choice> Note: <xs:choice> of element with maxOccurs>1 prevents the use of a union Size of AcknowledgementRange array is 1..unbounded

$int _wsrm__SequenceAcknowledgement::__sizeNack

CHOICE OF ELEMENTS <xs:choice> Note: <xs:choice> with embedded <xs:sequence> or <xs:group> prevents the use of a union Size of array of ULONG64* is 1..unbounded

struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_AcknowledgementRange * _wsrm__SequenceAcknowledgement::AcknowledgementRange

struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_Final * _wsrm__SequenceAcknowledgement::Final

char* _wsrm__SequenceAcknowledgement::Identifier

Element reference "http://docs.oasis-open.org/ws-rx/wsrm/200702":Identifier.

Required element.

ULONG64* _wsrm__SequenceAcknowledgement::Nack

Array ULONG64* of length 1..unbounded.

int* _wsrm__SequenceAcknowledgement::netrm__BufferRemaining

WCF netrm BufferRemaining.

TODO: Schema extensibility is user-definable. Consult the protocol documentation to change or insert declarations. Use wsdl2h option -x to remove this element. Use wsdl2h option -d for xsd__anyType DOM (soap_dom_element).

struct _wsrm__SequenceAcknowledgement::_wsrm__SequenceAcknowledgement_None * _wsrm__SequenceAcknowledgement::None

---

The documentation for this struct was generated from the following file:

• wsrm.h
