Overview

SOAP/XML and REST Web services can be easily created and deployed as gSOAP standalone services or installed as (Fast)CGI applications. In addition, the mod_gsoap Internet Server Application Programming Interface (ISAPI) extension offers the ability to run gSOAP services directly inside the Microsoft Internet Information Server (IIS). This is achieved through an ISAPI extension DLL. The ISAPI extension supports the deployment of multiple gSOAP services that can run together with the usual services on IIS. This approach offers a production-quality Web services deployment scenario.

The mod_gsoap ISAPI extension is designed to keep things simple so that existing gSOAP services can be recompiled for IIS deployment without modification of the source code. The mod_gsoap.dll DLL (dynamic link library) implements the ISAPI extension that uses the query string of the request URL to determine which gSOAP back-end service to run. It will select the appropriate service DLL to load the service dynamically, if not already present. Therefore, to add more services, simply create new DLLs for these services. IIS need not be restarted to deploy them.

Installation

To build and install the mod_gsoap.dll ISAPI extension for gSOAP:

In gsoap\mod_gsoap\gsoap_win\isapi\, there are two directories called vs2006 and vs2010. Choose the appropriate directory and installation instructions based on your version of Visual Studio.

Visual Studio 2010 Service Pack 1 (version 10.0.40219.1) or later (IDE):

Using Visual Studio 2010 SP1 or later, open all4iis.sln that can be found in gsoap\mod_gsoap\gsoap_win\isapi\vs2010\ in the gSOAP package.
Go to View|Other Windows|Property Manager. Select any of the projects, select the Release build dropdown, then double-click on PropertySheet.
Under the Common Properties dropdown, choose VC++ Directories and select Executable Directories. Add the full path to the gsoap\bin\win32 directory in the unpacked gSOAP package that contains the soapcpp2.exe tool.
Under the C/C++ dropdown, choose General and select Additional Include Directories. Add the gsoap\ directory that contains stdsoap2.h. Press OK.
Click Build|Build Solution to build the ISAPI extension for gSOAP (mod_gsoap.dll) and the samples, or right-click on the isapi project in the Solution Explorer and click Build to build only the ISAPI extension for gSOAP.
Install and use the mod_gsoap.dll ISAPI extension as described below.

Visual Studio 2010 Service Pack 1 (version 10.0.40219.1) or later (Developer Command Prompt for VS):

In the gsoap\mod_gsoap\gsoap_win\isapi\vs2010\ directory, open the file named PropertySheet.props. Make sure that the full path to the gsoap\bin\win32 directory that contains the soapcpp2.exe tool is in the ExecutablePath option, for example <ExecutablePath>C:\gsoap-2.8\gsoap\bin\win32;</ExecutablePath>.
Also make sure that the gsoap\ directory that contains stdsoap2.h is in the IncludePath option, for example <IncludePath>C:\gsoap-2.8\gsoap;</IncludePath>.
Open the Developer Command Prompt for VS and navigate to the gsoap\mod_gsoap\gsoap_win\isapi\vs2010\ directory.
Run the command nmake to build the ISAPI extension for gSOAP (mod_gsoap.dll) and the samples. Alternatively, run nmake in the gsoap\mod_gsoap\gsoap_win\isapi\vs2010\gsoap directory to build only the ISAPI extension for gSOAP.

Visual Studio C++ 6.0:

Open Visual Studio C++ 6.0 (or later).
Go to Tools|Options and activate the Directories Panel.
Select Include Files from the dropdown and add your project directory that contains stdsoap2.h.
Select Executable Path and add the full path to the gsoap\bin\win32 directory in the unpacked gSOAP package that contains the soapcpp2.exe tool.
Open all4iis.dsw that can be found in gsoap\mod_gsoap\gsoap_win\isapi\vs2006 in the gSOAP package.
Activate the all4iis project and build all.
Install and use the mod_gsoap.dll ISAPI extension as described below.

Deploying services with ISAPI

After building mod_gsoap.dll we are ready to deploy gSOAP services with the ISAPI extension.

The gSOAP package contains a calculator example to demonstrate the ISAPI extension. You will find this example in the gSOAP package under gsoap\mod_gsoap\gsoap_win\isapi\vs20##\samples\calc. We will use this example to walk you through the creation and deployment of an ISAPI service, so make sure to build it (see Intallation section).

Make sure to compile all sources in C++ compilation mode with Visual Studio C++. If you migrate to a project file .vcproj then set CompileAs="2" in your .vcproj.
Add a gsoap directory to your wwwroot directory, for example C:\Inetpub\wwwroot\gsoap.
Open Internet Service Manager from the Control Panel select Administrative tools.

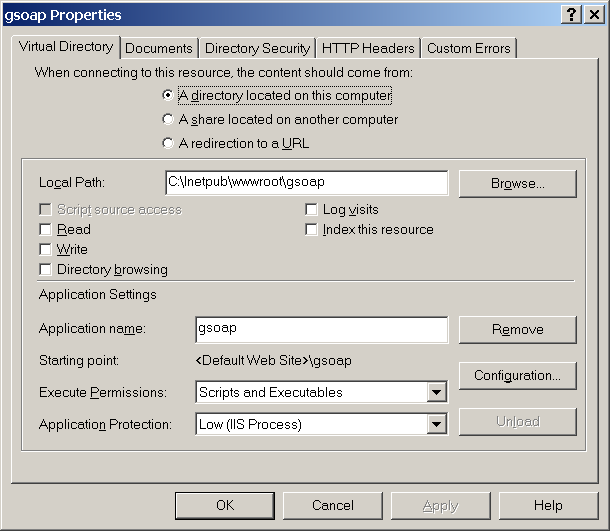

Create in Internet Service Manager a new virtual directory called gsoap, see details here on how to create a virtual root and also shown in this screen shot.
Copy mod_gsoap.dll (in gsoap\mod_gsoap\gsoap_win\isapi\vs20##\gsoap\) and calc.dll (in gsoap\mod_gsoap\gsoap_win\isapi\vs20##\samples\calc) to the newly created gsoap directory (for example C:\Inetpub\wwwroot\gsoap).
On 64-bit machines, you may have to enable 32-bit applications to run on the application pool. Go to Application Pools and find the pool your website is using (the default is DefaultAppPool). Right-click the pool, go to Advanced Settings, and set Enable 32-Bit Applications to True. Press OK.
Start the "World Wide Web Publishing Service".
Enter in your browser http://localhost/gsoap/mod_gsoap.dll. This should give a response from the server that explains what the correct URL is. This proves that mod_gsoap.dll is configured correctly.
If your browser downloads the .dll instead, you must set up a script map. In IIS, select Default Web Site, go to Handler Mappings, and click Add Script Map.... Type gsoap\mod_gsoap.dll as the request path. Use the full path to the mod_gsoap.dll in your virtual directory as the executable path. In Request Restrictions..., make sure the Access is set to Execute. Click OK and Yes.
Enter in your browser http://localhost/gsoap/mod_gsoap.dll?gsoap/calc. This should give a response from the server that you should use a POST command, not a GET. This proves that mod_gsoap was able to load your DLL. So in principle your installation and service deployment is OK.

To test the calculator IIS service with a simple client, do the following:

Check that the client code calcclnt.c of the calculator example in gsoap\mod_gsoap\gsoap_win\isapi\vs20##\samples\calc has the correct service endpoint URL, which must correspond to your installation: const char server[] = "http://localhost/gsoap/mod_gsoap.dll?gsoap/calc";
Build the calcclnt.exe client, e.g. using the calcclnt project file.
Open a DOS command window and go to the directory where calcclnt.exe was built and execute calcclnt.exe add 3 5.
The response should be: result=8.

We recommend to test services first as standalone gSOAP services to ensure that the service logic is correct. If the service logic is correct but the service DLL does not produce a response, then please see the next section. Otherwise, read on.

A Makefile is included that contains commands to start and stop debugging of IIS and for cleaning the directory. The advanced user can compile everything with just one command. Be sure that msdev.exe (VS2006 only) and nmake.exe are on your PATH. Then enter the command nmake from a DOS command window and presto!

To develop your own service DLL in Visual Studio, select File|New and create a new empty Dynamic Link Library project. Copy stdsoap2.def from the mod_gsoap\gsoap_win\isapi\vs20##\samples\calc directory to your project directory and add it to the project. This will ensure that the required functions are exported and visible to mod_gsoap, such as soap_serve that invokes service operations (this function is auto-generated by soapcpp2.exe and defined in soapServer.cpp).

In addition, two C functions should be defined by your service code, namely int mod_gsoap_init(void) and int mod_gsoap_terminate(void):

extern "C" {
int mod_gsoap_init(void) {
    // TODO: add your initialization code here
    return SOAP_OK;
}
int mod_gsoap_terminate(void) {
    // TODO: add your termination code here
    return SOAP_OK;
}

The mod_gsoap_init function is called by mod_gsoap when the DLL was successfully loaded and before processing begins. The mod_gsoap_terminate function is called when the DLL is unloaded. These functions should return SOAP_OK on success. You can use these initialization and termination hooks as you see fit.

Multiple ISAPI services can run together with all other Internet services on your machine on port 80 (or another port, as configured in IIS). The request your client must submit is a URL with a query string, such as was illustrated above with http://127.0.0.1/gsoap/mod_gsoap.dll?gsoap/calc.

The requested URL is evaluated by IIS and the query string (the part after the ?) is used to dispatch the service request to the calc.dll service.

Note that instead of 127.0.0.1 (which is the localhost), clients on the network should use the full domain name of the machine.

For security reasons only DLLs stored in the same directory as mod_gsoap.dll can be used. If you want to do specialized initializations in your DLL then you may want to add and export a DllMain function, which will be called when the IIS process attaches to your DLL and before it detaches it. Do not rely on the Thread attach/detach callback: in my experience IIS does not always call DllMain in your DLL if these threads were already in the thread pool before your DLL was loaded. Use thread local storage instead.

IIS Settings

This depends on the version of the Windows OS.

The gSOAP ISAPI extension uses ReadClient. The documentation of this function states: *"The number of bytes that the Web Server reads when receiving POST data is specified in the HKEY_LOCAL_MACHINE\COMM\HTTPD\PostReadSize registry key. The Web Server will read in, at most, the number of bytes specified in this registry value before calling the ISAPI extension."* This value should be changed if it is too small to handle POST requests that are larger than this value.

Furthermore, IIS enforces file upload size limits, which by default is 2MB. This is a problem for POST requests that are larger than the default. The IIS settings should be updated in web.config, for example to increase the allowed size of the POST request messages to 100MB:

<configuration>
    <system.webServer>
        <security>
          <requestFiltering>
            <requestLimits maxAllowedContentLength="100000000"/>
          </requestFiltering>
        </security>
    </system.webServer>
</configuration>

The gSOAP engine limits the size of requests to 2GB max, which can be changed by setting the value of soap->recv_maxlength to the max number of bytes allowed to receive. For other gSOAP settings, please see the gSOAP documentation.

Do not set gSOAP timeouts (send_timeout and recv_timeout), which may cause failures. IIS enforces timeouts internally.

Troubleshooting

If the client receives an error from the ISAPI service, such as for example:

SOAP FAULT: SOAP-ENV:Client
"End of file or no input"
Detail: http://localhost/gsoap/mod_gsoap.dll?gsoap/calc

Then we recommend the following steps:

Make sure that dumpbin.exe is in your PATH (it can be found somewhere in the Visual Studio binaries).
Open a DOS command window and go to the directory where mod_gsoap.dll is located (C:\Inetpub\wwwroot\gsoap). Execute the following command: dumpbin /exports calc.dll.
The output should contain the exported symbols that are listed in the stdsoap2.def file. If you don't find these symbols you propably forgot to add the necessary stdsoap2.def exports for your project. This should include soap_initialize, soap_serve, soap_delete, soap_end, soap_done, soap_register_plugin_arg, and soap_lookup_plugin. See for example stdsoap2.def in gsoap\mod_gsoap\gsoap_win\isapi\vs20##\samples\calc.

If you want to debug a DLL, you must set the DLL to run in-proccess. Right-click on the gsoap virtual root in internet service manager and set the Application Protection to Low (IIS Process). Remove the Enable Session State and buffering and Parent Paths. Don't forget to allow the IISAdmin and WWW Service to interact with the desktop.

To enable debugging of services and/or clients:

Compile calc.dll and/or calcclnt.exe with the DEBUG option (in Preprocessor Definitions add DEBUG).
Delete all .log files from the current directory, if any.
Run the client calcclnt.exe add 3 5 again.
You should get three files with the extension .log in the current directory of the client and in the DLL directory. Please read what is there.

Note: for Debugging with Win2000 there are two .reg files in the Div directory, that switch debugging of IIS on and off (see Q273639 and related), and a start and stop command in the Makefile to start and stop IIS debugging. Make sure that the path to msdev is in the System environment variables (PATH) of the system account (not only of your own user account, this is not seen by IISAdmin).

Creating the virtual root

If you have problems creating the virtual root then these instructions should help.

Open from the control panel Administrative Tools and then select Internet Services Manager (may be located in the Option Pack submenus).
Click with the right mouse button on Default Web Site, then select New and Virtual Directory.
Click Next and enter as Alias the name you want to give to the URL, such as soap. Then press Next again and browse for the directory where your DLL that you have built in the previous step is, for example in c:\Inetpub\wwwroot\gsoap and press Next.
In the access permissions, disable all permissions except Execute (such as ISAPI applications or CGI). This must be enabled.
Click Next and Finish.

For testing it might be best to enable the Browse permission and then browse to http://localhost/gsoap.

License

The ISAPI extension for gSOAP is released under the gSOAP open source public license and the GPLv2. The open source licensing is replaced by Genivia's license for commercial use when a commercial-use license is purchased by customer.
